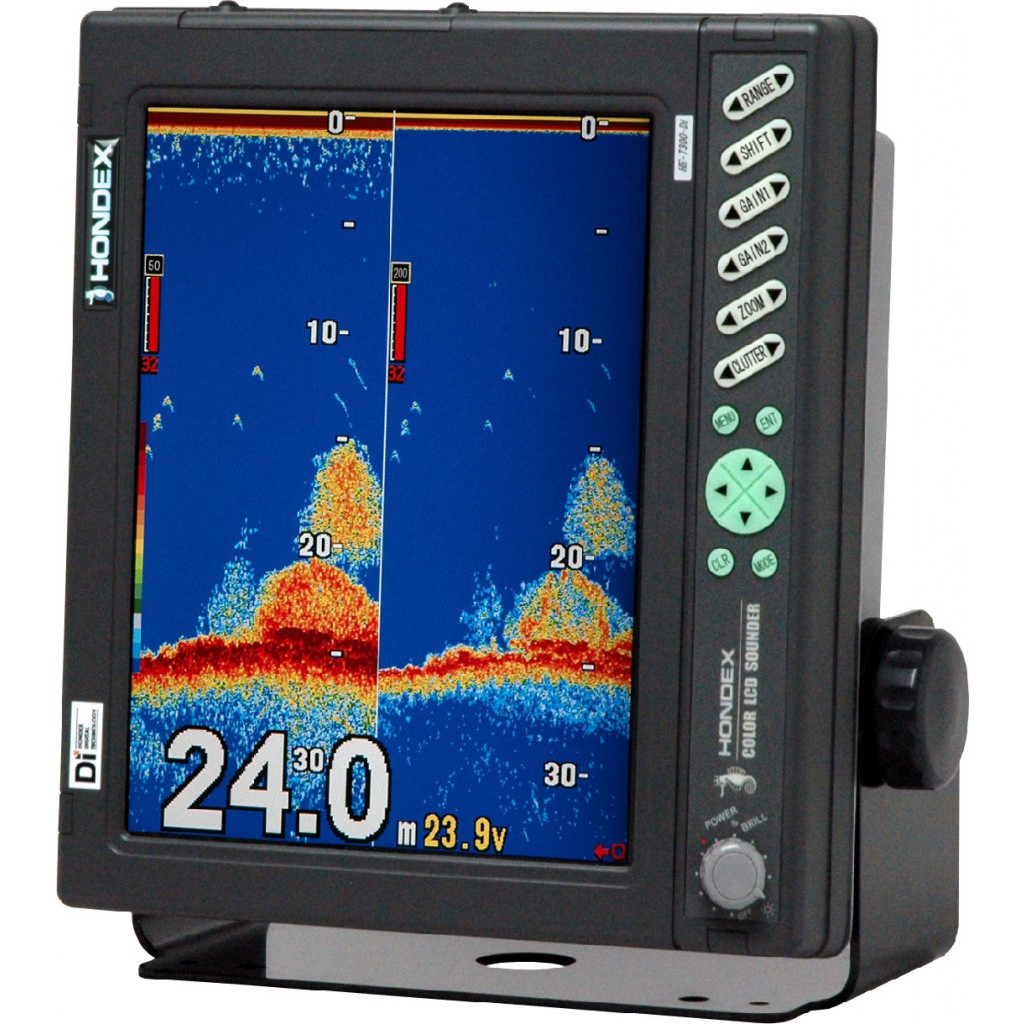

Hondex HE-7300Di / HE-1500Di
Hondex HE-7300Di / HE-1500Di

Hondex HE-7300Di / HE-1500Di

10.4 inch TFT LCD / 15 inch Color TFT LCD Echo Sounder

HONDEX

Description

  • The HE-7300Di/HE-1500Di is a variable frequency Echosounder with a large 15" Colour TFT Display. The Di series introduces the latest development in echosounder technology, direct digital conversion. This allows optimized filtering even for weak signals as well as deeper detection for deep water and higher resolution image for shallow water.
  • The HE-7300Di/HE-1500Di is ideal for retrofit installations, as this sounder is designed to connect to your existing transducer. As a variable frequency we can match to transducers from 28 to 200kHz and power outputs of 1 to 5 kW.
  • Dual Display for the same frequency: Different gain settings are possible for single frequency image by splitting the image of single frequency to two different screens.
  • Whole Display Gain adjustment: Gain adjustment is applied to the whole of the image on the screen.
  • Variable Frequency: The Di series is designed to connect with your existing transducer.

Display10.4 inch Color TFT LCD (7300-Di) / 15 inch Color TFT LCD (1500-Di)
Number of Pixel640 x 480
Operating Voltage11-35V DC
Power Consumption24W (7300-Di) / 36W (1500-Di)
Display StylePortrait, Landscape & Reverse
WeightAppro. 4kg (7300-Di) / Approx. 7kg (1500-Di)
WaterproofIPx4
Output Power1 to 5kW (Depending on the transducer)
Frequency

Dual Frequency from 28, 32, 36, 40, 50, 65, 75, 100, 200kHz

To use other freq, please ask your dealer.

Depth Range

5 to 2,000 Meters / Fathoms, Brazas

15 to 6,000 Feet

Max Shift Range

2,000 to 4,000 Meters / Fathoms / Brazas

6,000 to 8,000 Feet

Auto Range / Auto ShiftOFF / Range / Shift
Auto GainOFF / Low / High
A-ModeOFF / ON
Fish AlarmOFF / ON
Water Temp. AlarmOFF /  In Range / Out Range (Optional water temp. sensor required)
Depth AlarmOFF/ In Range / Out Range
Expansion ModeOFF / BL / Auto / Manual
Expansion Ratex2, x4, x8
Background Color4 Colors
Color Configuration5 Patterns
Depth UnitMeters / Feet / Fathoms / Brazas
Scale LineOFF / ON
Super RangeOFF / ON
Clean EchoOFF / L / M / H
STCL / M / H
TX PowerOFF/ Low / High
NMEA Output

Depth (DBT sentence)

water Temp. (MTW sentence)
