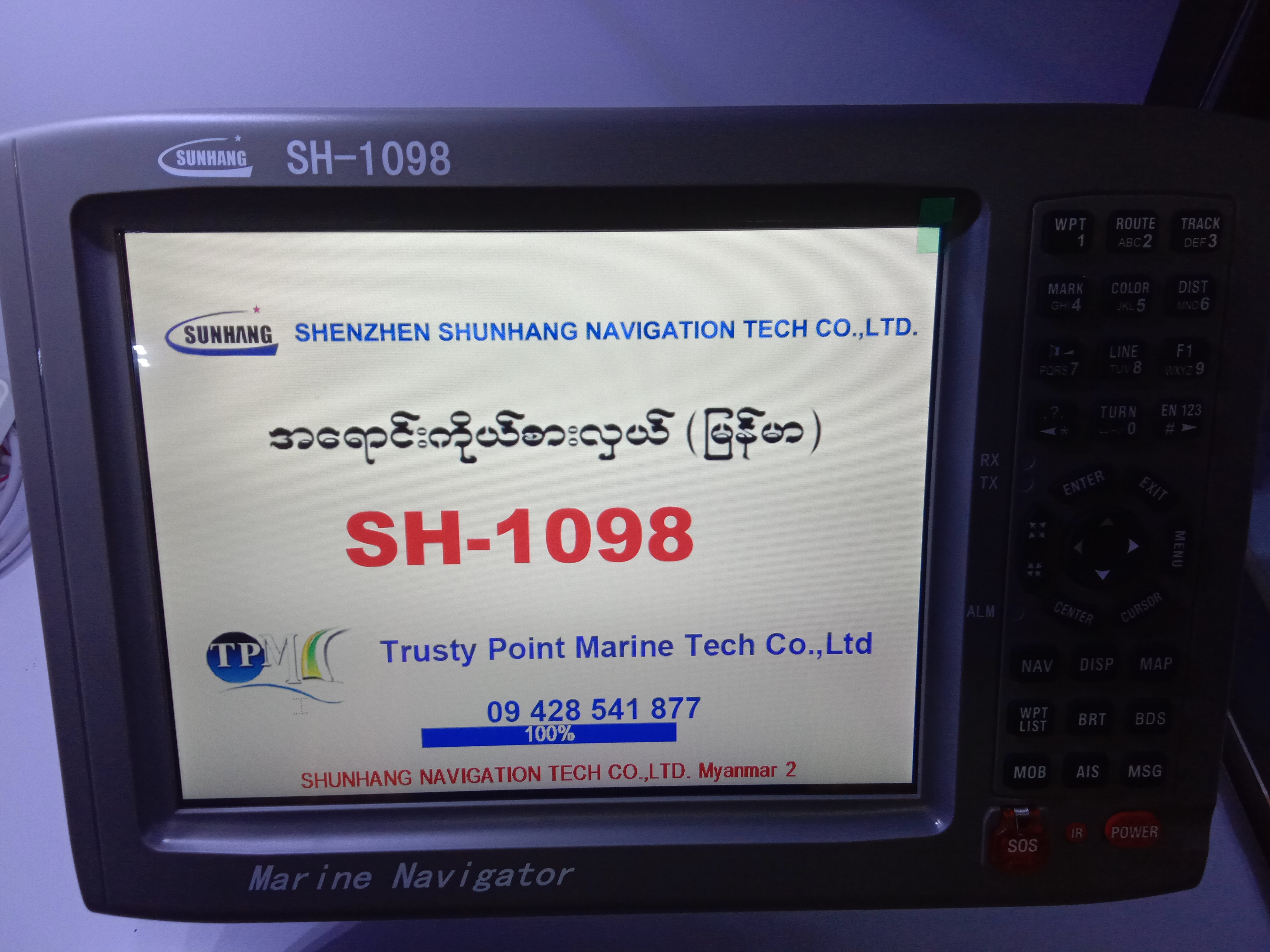

10.4 inch Color Chart Plotter GPS with Class B AIS Transponder
SHUNHANG
10.4 inch Color Chart Plotter GPS/ Class B AIS
Selling Points:
1.10000 waypoints;10000 marks,500routes,max300waypoints/route;24tracks,6100track points/track
2.Fishfinder (optional),AIS (optional),3G phone(optional),touch screen(optional)

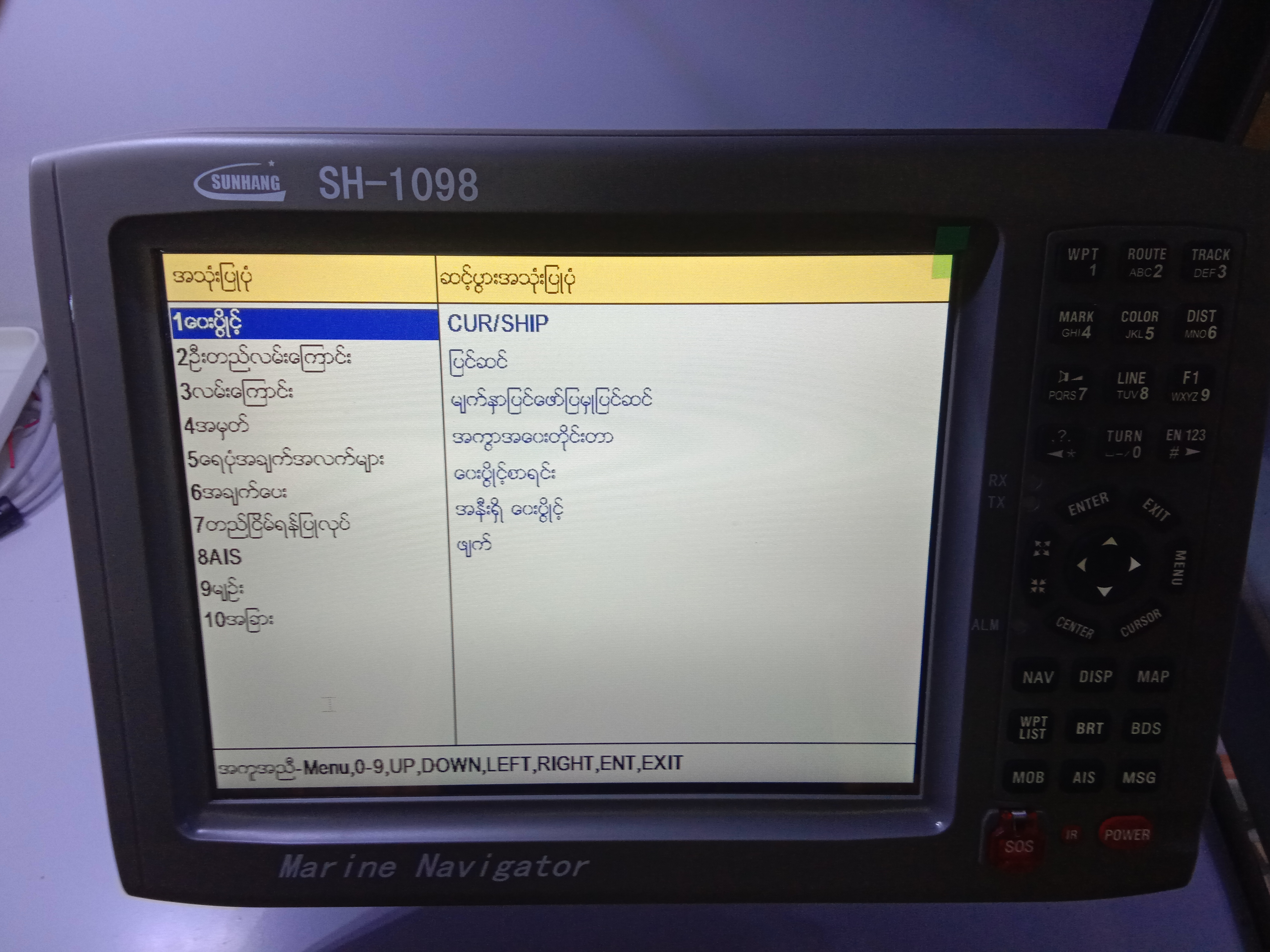

3.Display screens:Positioning Screen,Satellite Screen,Compass Screen,Map Screen,Highway Screen,AIS Screen,Fishfinder Screen
4.Alarm:Encounter,Distance,Arrival,Anchorage,XTE,Timed Reminder,Bridge Reminder

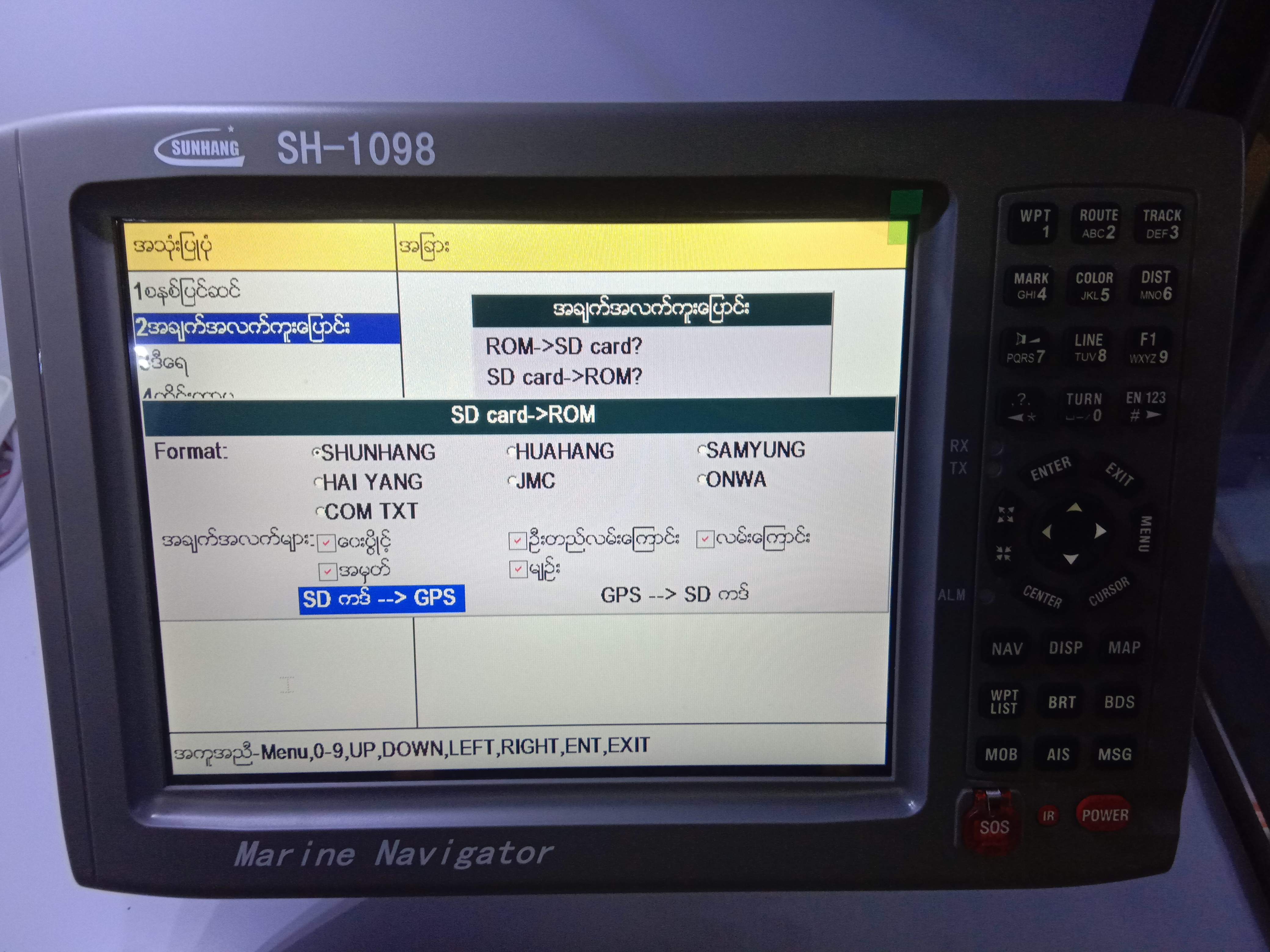

5.Support update chart plotter by SD card,support data butt
6.AIS:receive and send message
7.Waterproof,mouisureproof,salt spray proof
GPS Characteristics
Receive channel: GPS: 12 parallel channels, 12 satellite tracking
Positioning Systems: all-in-view
Accuracy GPS: position: <5m>
Start Time: <3>
Restart Time: 0.1second
Receive Frequency: L1(1575.42±MHz)
Tracking speed: 0.1-1000Byte
Dynamics
Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max
Receiver Assembly
Display System: Screen size: 10.4inch true color LCD, 800X600pixels, brightness
Display modes: Position Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen,
AIS Screen, Day/Night Mode
Memory capacity: 10000 waypoints; 10000 marks, 500routes of up to 100waypoints each; 24 tracks of
up to 6100 track points each
Tracking speed: 0.1byte
GPS Alarm: ARR ALARM; XTE ALARM; ANC ALARM; MET ALARM
Voltage: 12-24vdc
Power Supply: <8w>
AIS Characteristics
Working frequency: 161.975MHz/162.025MHz
Output power: 5w
Channel Bandwidth: 25 KHz
Channel spacing: 25 KHz
Modulation mode: 25 KHz GMSK
Bit Rate: 9600b/s+50ppm (GMSK)
AIS receiver sensitivity: -116dBm
Operating Environment
Temperature
Antenna unit:-25℃ to +70℃;
Display unit:-15℃ to +55℃
Humidity: 40℃<93>
Temperature range: -15 ℃ - + 70 ℃
Storage temperature: -40℃-+80℃
Waterproof
Antenna unit: IPX6
Display unit: IPX5
Product size: 331mm (L)*108mm (W) *229mm (H)
Net weight: 2.1kg
Packing size: 388mm (L)*229mm (W)*267mm (H)
Gross weight: 6kg
Packing List
1. SH-1098 Unit*1 pc
2. Knob*2 pcs
3. Power cable*1 pc
4. User manual*1 pc
5. Screw (PA4*20) *4pcs
6. GPS antenna*1 pc
7. AIS antenna *1 pc
8. AIS feeder cable* 1pc
9. Iron frame* 2 pcs
10. AIS VHF antenna*1 pc
SH-1098A_Myanmar_User_Manual2.pdf
