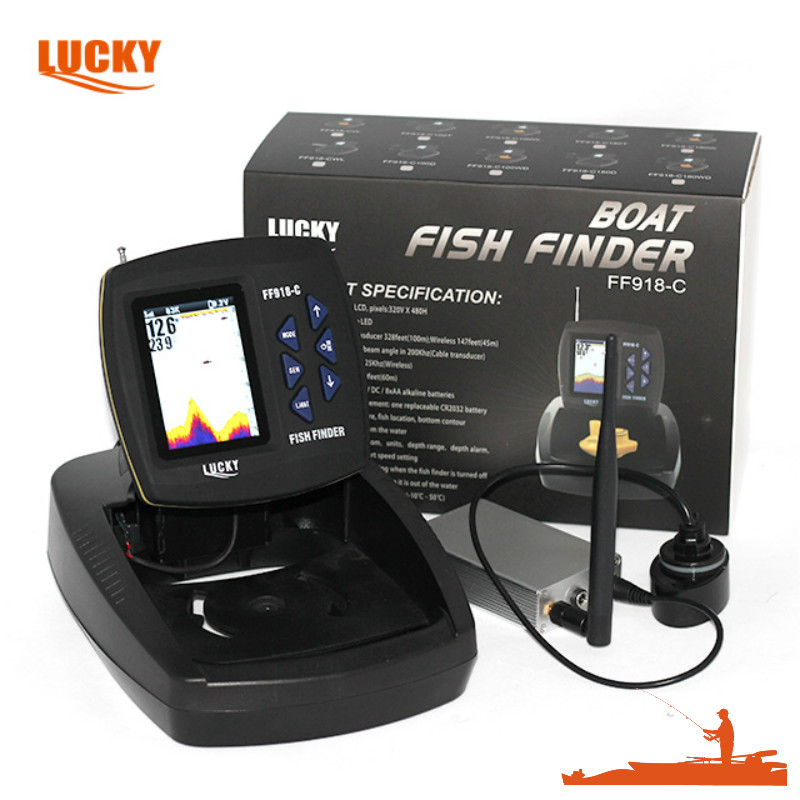

Boat Fish Finder
Lucky
Display MVA-TFT-LCD 65536 colors, 320V x 480H Power Output (RMS) 100W Power Output (peak-topeak) 800W Operating Frequency 200 kHz(transducer) / 125 kHz (wireless) Sonar Converage (transducer mode) 45 degrees at 200 kHz Sonar Converage (wireless) 90 degrees at 125 kHz Depth Units Meter / Feet Depth Capability 328 Feets (transducer mode 200 kHz) / 140 Feets (Wireless mode 125 kHz) Wireless Operating Range Up to 328 Feets Target Separation 2.5 inches Fresh/Salt Water Environment Temperature Sensor included in transducer Operational Temperature From -10°C to 50°C (14°F to 122°F) Power Input 10 to 20V DC / 8 AA alkaline Batteries Transducer Mounting Suction Cup Mount, Wireless Unit Mounting Portable Case Clear Fish Icon, Fish Alarm Memory Built-in Memory Stores Sonar Setting When the Unit is Turned Off W-Sensor Could Shut Down When It Is Out of the Water W-Sensor Battery Requirement One Replaceable CR-2032 Lithium Battery Operational Wireless Frequency 433.93 MHz
