AIS Fishing Net Buoy
SHUNHANG

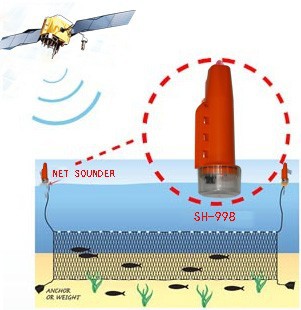

>>>Marine GPS AIS buoy for fishing net position indication. New design series the battery life more durable, GPS positioning more precision. The best partner of the ocean vessel fishing Industry.
Model : SH-998 ( 8 NM Fishing Net Buoy)
Model : SH-398 ( 12 NM Fishing Net Buoy)
Model : SH-098 ( 15 NM Fishing Net Buoy)
Specification:
AIS Transmit frequency: AIS1,161.975MHz;AIS2,162.025MHz
Output power: 8w
Modulation mode: 25KHz GMSK
Frequency interval: 25KHz
Broadband: 25KHz
Antenna: built-in & External
Transmit distance: about 8nm/12nm/15nm
Positioned update: 2.0 minutes (adjustable)
Bit rate: 9600b/s+50ppm(GMSK)
GPS: 20 channels
Battery Type: Lithium battery 6000mAh rechargeable (can use extra backup battery)
Working hours: 680hrs
Voltage: 7.4V ais buoy voltage can be shown on the AIS Screen)
Working Environment: (-20-+60)
Waterproof: IPX7
Product Color: Orange
LED color: Red
Dimension: 88mm(w)*194mm(h)
Net weight:
Packing size: 109mm(W)96mm(H)*36.8mm(D)
Gross weight: 1kg
Packing List
1.SH-998/398/098 unit*1pc
2.User Manual*1pc
3.Charger*1pc
SH-098_15NM.pdf
