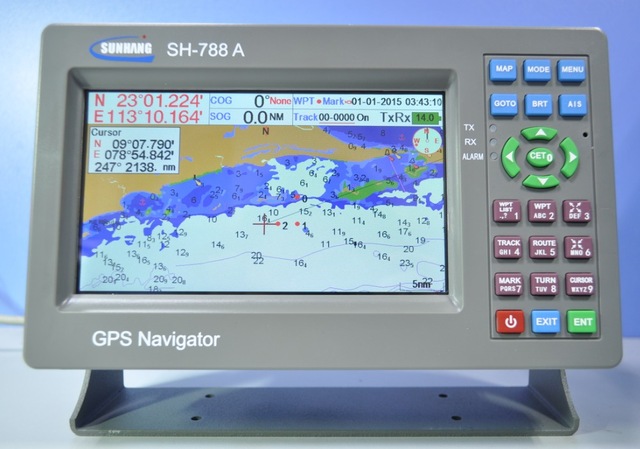

SH-788A
SH-788A

SH-788A

7inch marine GPS chart plotter with class B AIS transponder

SHUNHANG

Description

  1. 3000 waypoints; 300Marks, 20routes of up to 10waypoints each; 12 tracks of up to 2000 track points each
  2. Display screens: Positioning Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen
  3. FIX Alarm; ARV Alarm; XTE Alarm; ANC Alarm; Clock
  4. Support update chart plotter by SD card, support data butt
  5. Waterproof,mouisureproof,salt spray proof
  6. Class B ais transponder&receiver
  7. Track protection , can delete any track

GPS Characteristics

Receive channel gps50 parallel channels, 50 satellite tracking
Positioning Systemsall-in-view
Accuracy GPSposition: <5m>
Start Time<  3 seconds (hot start); average 45seconds (warm start); average 60seconds( cold start)
Restart Time0.1second
Receive FrequencyL11575.42MHz
Tracking speed0.1-1000Byte
 Dynamics
Altitude50,000m Max
Velocity500 m/s
Acceleration4g Max

Receiver Assembly

Display SystemScreen size:7 inch true color LCD
Display modesPositioning Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen
Memory capacity3000 waypoints; 300Marks, 20routes of up to 10waypoints each; 12 tracks of up to 2000 track points each
Tracking speed0.1byte
GPS AlarmFIX Alarm; ARV Alarm; XTE Alarm; ANC Alarm; Clock
Voltage10-36vdc
Power Supply: <  4W


Operating Environment

  • Temperature
  • Antenna unit:-25 to +70;
  • Display unit:-15 to +55
  • Humidity: 40<93>
  • Temperature range: -15 - + 70
  • Storage temperature: -40-+80
  • Waterproof:
  • Antenna unit: IPX6
  • Display unit: IPX5
  • Product size: 262mm (L)*172mm (W)*85mm(H)
  • Net weight: 0.95kg
  • Packing size: 272mm (L)*170mm (W)*235mm (H)
  • Gross weight: 2.8kg

Packing List

  1. SH-788A unit* 1pc
  2. Knob*2 pcs
  3. Power cable*1 pc
  4. User manual*1 pc
  5. Screw (PA4*20) *4pcs
  6. GPS antenna*1 pc
  7. AIS antenna *1 pc
