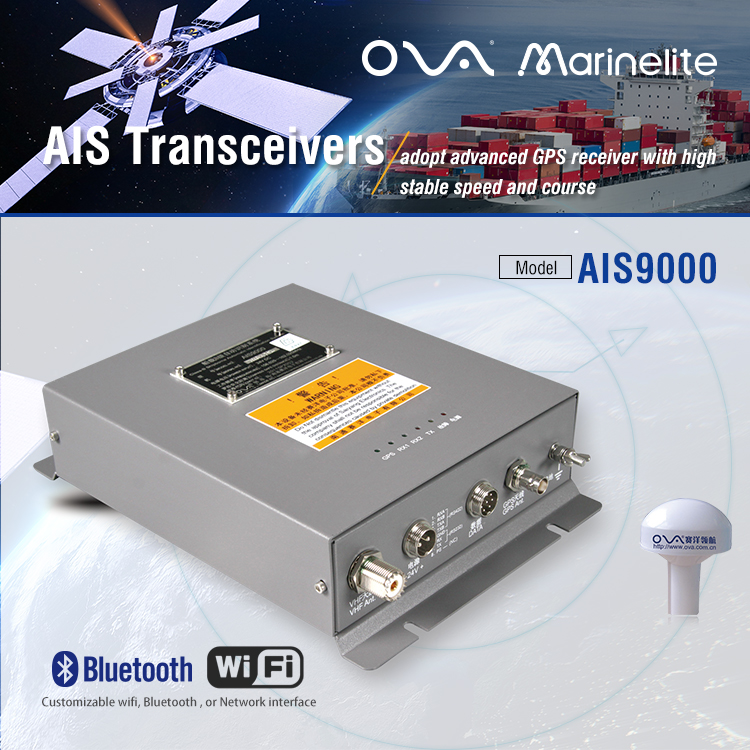

AIS9000 OVA High Quality marine Class B AIS Transponder
Product Description
The marine GPS AIS class B transponder which can receive and transmitted AIS signal is supplied by OVA.
AIS transponder adopt advanced and independent R&D technology of high stable speed and course.
AIS transponder can transmitter and receive the information and you can see the receiving information by connecting PC.
Model : AIS9000
Power Supply
DC 24V (11~35V)
Power
High-performance, full isolated, PWM control of power supply
Installation
Desk or Hanging Installation
VHF Transceiver
Frequency Range
156.025 MHz~162.025 MHz
Channel Bandwidth
25KHz
Modulation
GMSK
Number of Transmitters
1
AIS Channel 1
CH 87B (161.975MHz)
AIS Channel 2
CH 88B(162.025MHz)
Tx Power Output
2 Watt(33dBm ±1.5dBm)
Rx Sensitivity
<-107 dBm @ 20% PER
Rx Message
AIS Class A & B messages
GPS Receiver(Built-in)
Receiving Channels
50 channels(Customizable GPS+Beidou)
Acquisition Time
Cold Start: 45s Hot Start: 15s
Accuracy
<15m>
LED INDICATION
Power(Red)
System Power on/off
Error(Yellow)
Receiving or transmitting error
TX(Red)
Transmitting AIS Data
RX1(Green)
Receiving AIS channel 1 data
RX2(Green)
Receiving AIS channel 2 data
GPS(Green)
Receiving GPS data
Interface
GPS Antenna Connector
BNC
VHF Antenna Connector
NS-KYA3
NMEA0183(RS-422)
1(38400bps)
Environment
Input/Output
-15°C~55°C(+5°F~+130°F)
Waterproof
IP44
Applicable Standards
IEC 62287-1 Ed.2, 2010 IEC 61108-1 Ed.1, 2003 IEC 61162-1 Ed. 3, 2007
IEC 60945 Ed. 4, 2002 IEC 61162-2 Ed. 1, 1998 ITU-R M.1371-4, 2010
