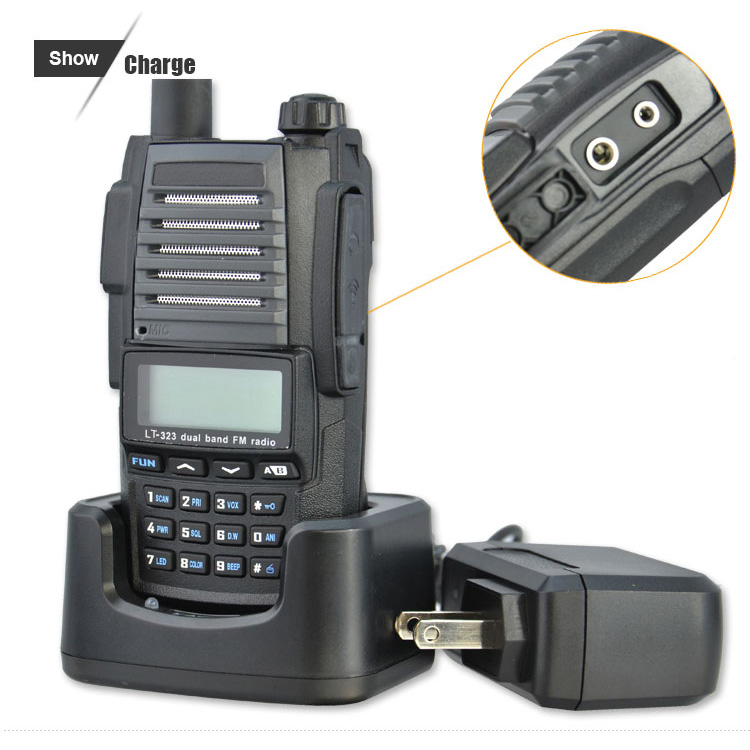

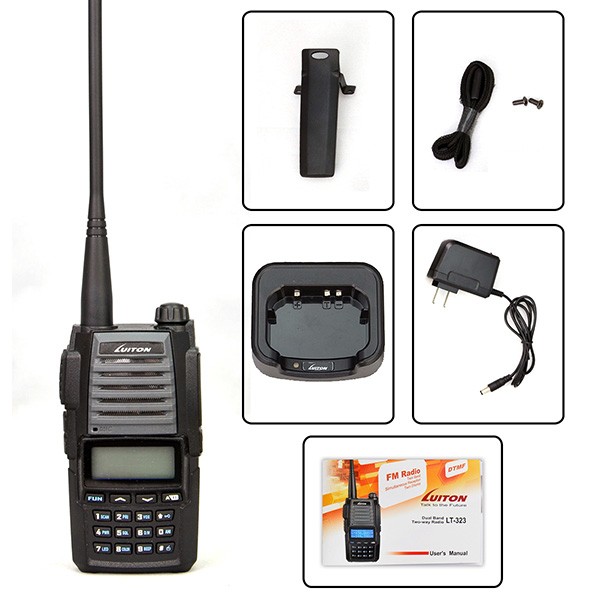

10W VHF/UHF Long Range Transceiver
Luiton
Product Description
Features of LT-323
FM radio, wide frequency display
136 Mhz~174Mhz and 400 Mhz~520Mhz
U-V ,U-U, V-V modes
DTMF/ANI
12.5KHz/25KHz selectable
Humanized menu
Standard & nonstandard CTCSS available
Selected call, single call, group call; remote kill, stun, activate & revive
High/Low Power Switchable
Monitor, VOX
Auto Battery Save
Low Battery Alert
Busy Channel Lockout
CTCSS-50/CDCSS-105
TOT (Time-out timer)
ending sound silence
squelch level 0-9 adjustable
Priority Channel Scan
Different Frequency Function
PC Programmable
| General | |
| Frequency Range | 136-174MHz 400-470MHz 450-520MHz |
| Channel No. | 99 |
| Channel Spacing | 12.5/25KHz |
| Voltage | 7.5V |
| Battery | 2000/2600mAh(Li-Ion) |
| Frequency Stabilization | ±2.5ppm |
| Operating Temperature Range | -20°C~+55°C |
| Antenna Impedance | 50 |
| Dimensions(H*W*D) | mm(H)× mm(W)× mm(D) |
| Weight(including antenna, battery) | g |
| Distances | 2~15km |
| Transmitter | |
| RF Power Output | 5W |
| Modulation Type | F3E |
| Spurious and Harmonic | ≤ -60dB |
| Residual Radiation | ≤ -40dB |
| Modulation Distortion | ≤5% |
| Maximum Frequency Deviation | ±5KHz |
| Receiver | |
| Sensitivity | ≤0.2µV |
| Modulation Band | ±5KHz |
| Adjacent Channel Selectivity | ≥60dB |
| Intermodulation Anti-interference | ≥60dB |
| Spurious Response Rejection | ≥60dB |
| Rated Audio Output Power | ≥500mW |
| Rated Audio Distortion | ≤5% |
